- Wide measuring range lets you monitor your vacuum system from 1.00E-04 to 1,000 Torr with a single gauge
- Includes two setpoint relays, user-selectable analog output, and RS232 / RS485 serial communications
- Analog output is configurable as a non-linear S-curve, log-linear, or user-scalable linear voltage signal
- Space-saving 1/8-DIN panel mount housing easily adapts to instrument or rack-mount panel installations
- Bright OLED digital display
- User programmable display units in Torr/mTorr, bar/mbar, Pa
- 1 analog output, 2 setpoint relays
- Also capable of operating your existing Granville-Phillips® Convectron® vacuum gauge sensor
- CE and RoHS compliant
VGC301 Vacuum Gauge Controller
The VGC301 vacuum gauge controller is a convenient and inexpensive power supply and readout instrument for a CVG101 Worker Bee convection vacuum gauge sensor. The 1/8-DIN housing can be used as a bench top or a panel mount instrument. The VGC301 is powered by user supplied 12 to 28 Vdc, 2 W, or by InstruTech series PS301 optional power supplies

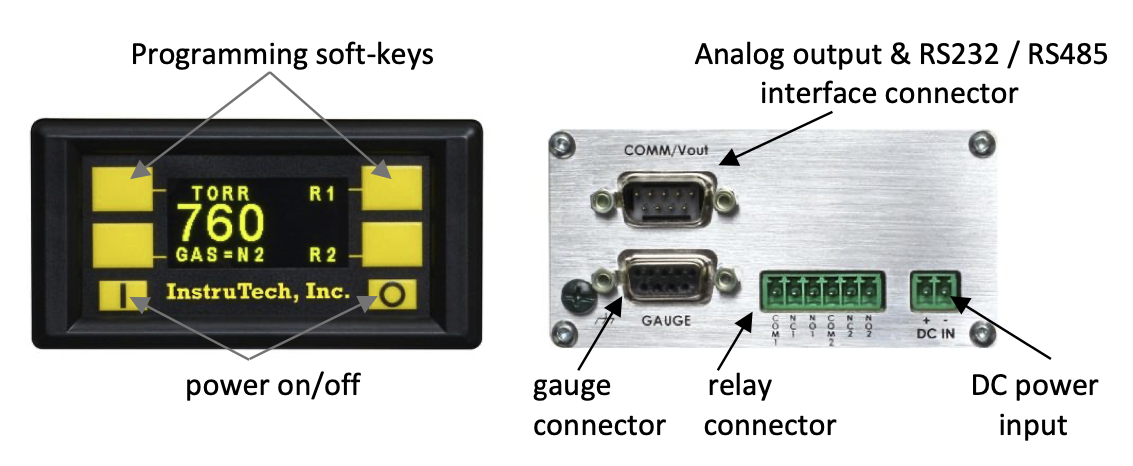

Controls and Connections
Compatibility
Signals and relay functions are the same as found on similar convection gauge controllers from other manufacturers. The VGC301 controller, CVG101 vacuum gauge sensor and cable can be directly interchanged with Granville- Phillips® 375 and 475 controllers, 275 Convectron® gauge and gauge cable (Remote interface, relay, and power connectors are different).
Features
- Wide measurement range of 1.00E-04 to 1,000 Torr
- A single vacuum gauge can monitor your vacuum system pumpdown and venting
- Also a lower cost plug-compatible drop-in replacement gauge for Granville-Phillips® Convectron® gauges
- Performance identical to existing Convectron gauges, except robust design withstands more shock and vibration, offering longer warranty
- Significant savings for you - no changes to your system - use your existing Convectron controllers, cables, and modules
- CE and RoHS compliant
- Typical lead times of 5 to 7 days
- Standard warranty of 2 years
