EBS15-xxx-UHV

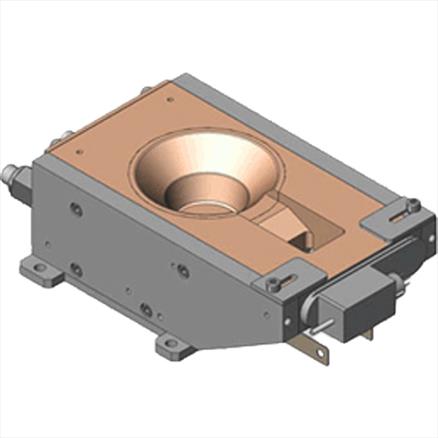

Single Hearth Evaporator EBS15-xxx-UHV
The large evaporator can be equipped with a maximum pocket volume of 100 cm³. With an operating power of up to 15 kW it is specialized for the use in metallization system or applications which require large capacity of the evaporate.
Specifications
- Max. Operating power 15 kW
- High voltage range 5 – 10 kV
- Coil deflection current (x/y) +/- 1 A
- Mounting optional on CFF
Typical standard crucible volumes
- 1 x 25 cm³ (-025)
- 1 x 40 cm³ (-040)
- 1 x 100 cm³ (-100)
