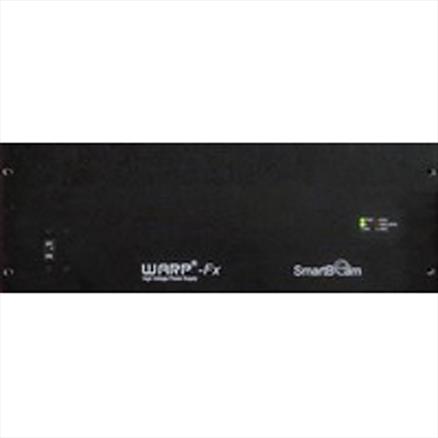

BeamTec WARP 3

With the new WARP series BeamTec provides compact primary switched high voltage power supplies for high power applications. The most powerful model can provide 2 Evaporators with a combined power of 10 kW from a singel 4 U device. The new FX-series of the WARP high voltage power supplies even incorporates a 500 Watts DC filament power supply with its high voltage transformer.With the new WARP series BeamTec provides compact primary switched high voltage power supplies for high power applications. The most powerful model can provide 2 Evaporators with a combined power of 10 kW from a singel 4 U device. The new FX-series of the WARP high voltage power supplies even incorporates a 500 Watts DC filament power supply with its high voltage transformer.

Max. Output power 3 kW
Max. Emission current 375 / 500 mA
High voltage range 4 – 8 / 4 – 6 kV neg.
Simultaneously measured HV Outputs 1

Enquire about this Product

Features of the WARP range

1,5 / 3 / 6 / 10 kW output power
Primary switched resonsant converter technology
Ultra-fast arc Management
Low stored output energy
Optional second HV output with integrated eimission measurement (-2HVO)
Optional arc current limit (-ACL)
Optional max. 2 integrated filament power supply for WARP-Fx series (+ 2 U)
