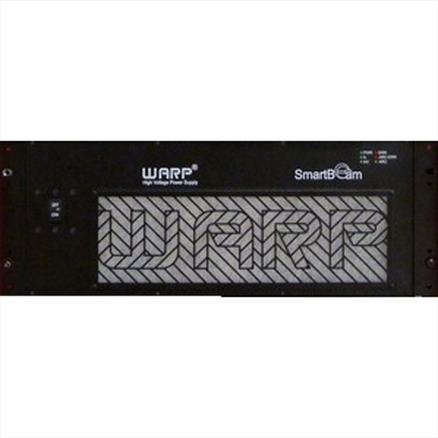

BeamTec WARP 6

BeamTec WARP 6

With the new WARP series BeamTec provides compact primary switched high voltage power supplies for high power applications. The most powerful model can provide 2 Evaporators with a combined power of 10 kW from a singel 4 U device. The new FX-series of the WARP high voltage power supplies even incorporates a 500 Watts DC filament power supply with its high voltage transformer.​

Max. Output power 6 kW
Max. Emission current 600 mA
High voltage range 4 – 10 kV neg.
Simultaneously measured HV Outputs 1 / 2 with integrated emission measurement



Enquire about this Product

Features of the WARP range

  • 1,5 / 3 / 6 / 10 kW output power
  • Primary switched resonsant converter technology
  • Ultra-fast arc Management
  • Low stored output energy
  • Optional second HV output with integrated eimission measurement (-2HVO)
  • Optional arc current limit (-ACL)
  • Optional max. 2 integrated filament power supply for WARP-Fx series (+ 2 U)
