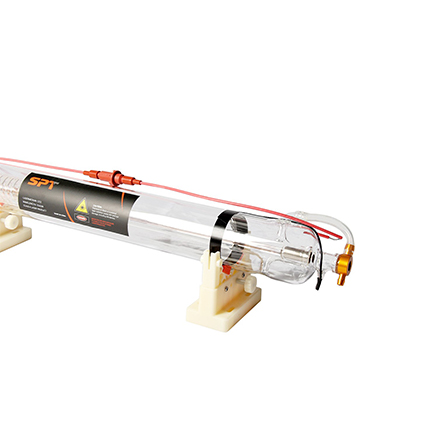

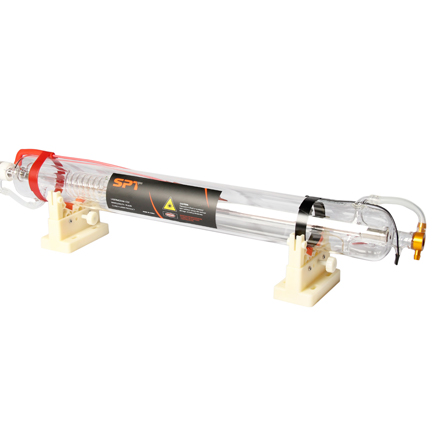

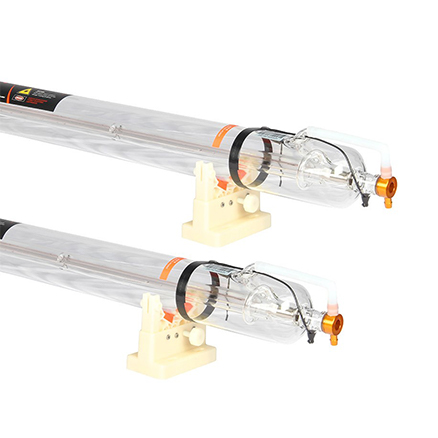

Our “C series” CO2 laser tubes are specialised with high optical quality, strong cutting force, and high-standard stability.
The C collection CO2 laser tubes have high optical quality, strong cutting force, and high stability. Their advanced vacuum coating technology has further improved the power and service life of the laser tubes. It also provides stable laser sources for high-demand laser machinery manufacturers.
Applications using our laser tubes include:
Please visit our dedicated online shop to purchase a laser tube from the listed laser types or alternatively purchase the C60 directly from our stock by clicking the 'Buy Now' button below.
| Model: C35
| Rated power: 35W
|
| Wavelength: 10.6μm
| Max. power: 40W
|
| Length: 720±5mm
| Stability: ≤±5%
|
| Diameter: 50±1mm
| Excitation mode: Electrical excitation
|
| Ignition voltage: 16-18KV
| Cooling: Water-cooled 15-25℃
|
| Beam divergence angle: 3.1mrad
| Operating voltage: 8-9KV
|
| Modulated frequency: ≤3KHz
| Beam quality: ≤1.1
|
| Ignition current: 4mA
| Net weight: 1.0Kg
|
| Working current: 15-20mA
| Laser mode: Multi-low-order mode
|
| Spot diameter: 4±1mm
| Carton size: 840*130*110mm
|
