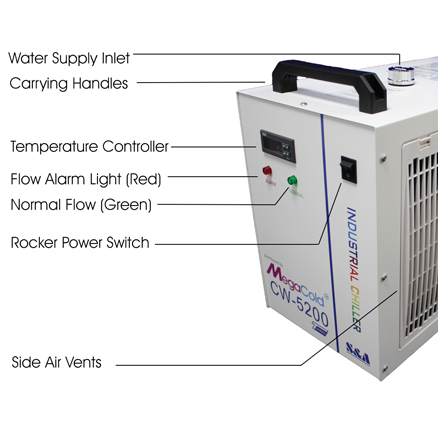

  • CW5200 Front Description

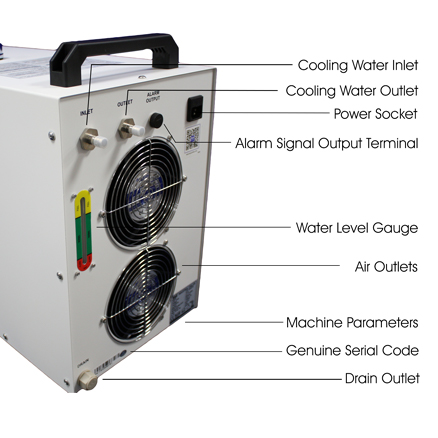

  • CW-5200 Rear Description

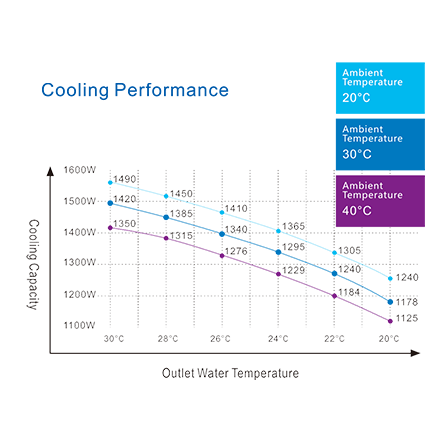

  • Cooling Chart

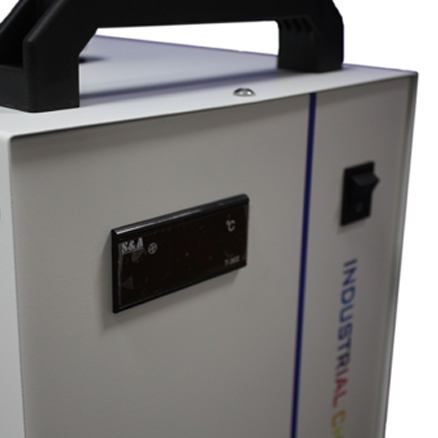

  • Close up of front panel CW-5200

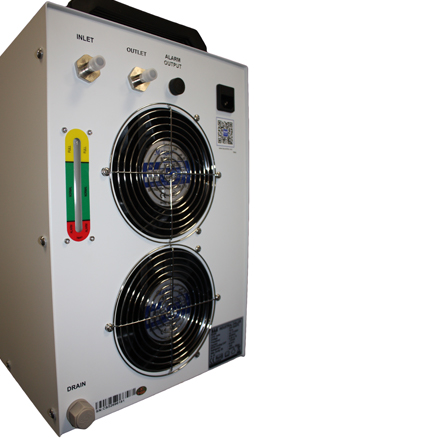

  • Tall view of Rear CW-5200

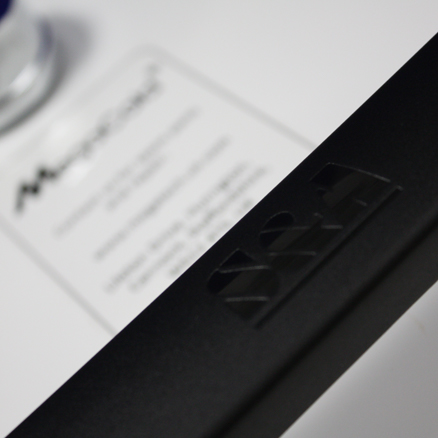

  • Carry handle for CW-5200

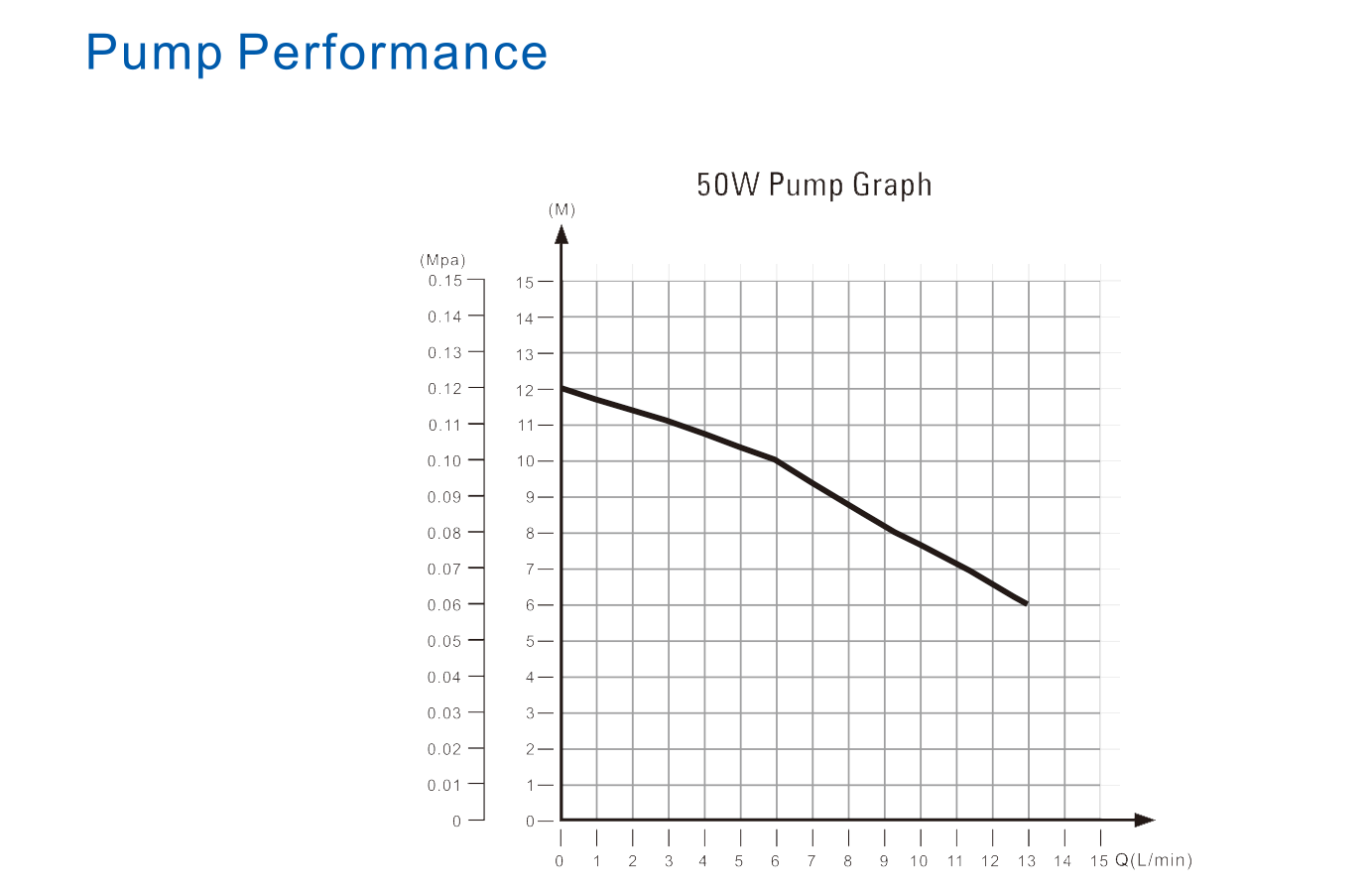

  • Pump Performance

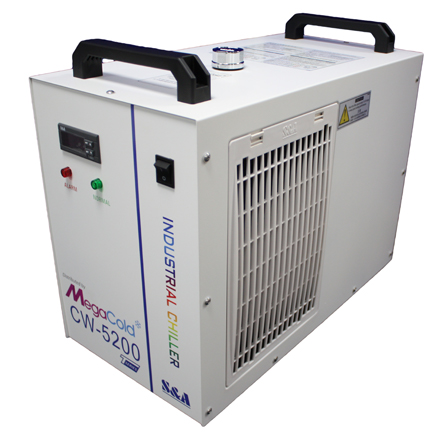

S&A CW-5200 Chiller



The S&A CW-5200 is a low-cost, compact and high quality passive industrial cooler designed for a range of applications. With a maximum flow rate of 13 L/min, this product are ideal for medium-volume applications.

Features:

  • 1,400W cooling capability
  • Precision temperature control
  • Intelligent temperature sensing
  • Built-in fault find (with alarm)

Suitable for all machines from 40w – 150w rated output power



Key Benefits When Buying From Us:

  • One-year warranty (offered by Megacold)
  • Cost effective
  • Breakdown support (offered through Megacold)
  • Next day delivery in the UK (offered by Megacold)
  • Stocked in the UK so no wait time.
  • 45 years worth of experienced service engineers at your side.

Please note if out of stock: we replenish stock often so please send us an email to find out more details about when our next delivery is.

View this product on our e-commerce platform or simply purchase now by clicking the 'Buy Now' button below.

View the CW-5200 chiller on the Megacold Shop<
Reviews of the Megacold service

Reviews of the Megacold service

"This was the first time we purchased from Megatech and we needed a chilling unit quickly. Ben, was very helpful, gave great customer service and he recommended the correct unit based on our application. Amazingly, the Chiller unit was at our premises the next morning & it was very easy, & quick to install. Our overall experience was very good and we certainly will purchase from Megatech in the future".

Lee Wright - Company Founder & CEO : Encapsula Ltd. Micro-Encapsulation Technologies



Why buy from Megatech?

  • Megatech is a fully authorised distributor of S&A products;
  • We have over 45 years of experience in installing and supporting industrial chiller products;
  • Next day delivery of S&A chillers from stock;
  • One year warranty on all S&S chillers;
  • UK-based support via phone and email;
  • Any faulty items are returned to our UK-base for immediate swapout.



Model comparison / selector

ModelTemperature precision (degrees C)Max Flow rate (L/min)Max Lift (M)Nominal cooling capacity
CW-3000n/a101050w/degrees C
CW-5200+/- 0.313121.4 kW



Technical Specifications

Model
CW-5200
Voltage
AC 1P 220V
Frequency
50/60Hz
Current
0.25 - 3.9A
Machine Power
0.86kW
Compressor Power
0.49/0.57kW
0.66/0.77HP
Nominal Cooling Power
4825/5797Btu/h
1.41/1.70kW
1219/1465cal/h
Pump Power
0.05kW
Max Lift
12M
Max Flow
13L/min
Nett Weight
26kgs
Gross Weight
29kgs
Temp Stability
0.3c
Reducer
Capillary
Tank Capacity
6L
Inlet and Outlet
OD 10mm barbed connector
Dimensions
58x29x47cm (L x W x H)
Package Dimensions
70x43x58cm (L x W x H)
