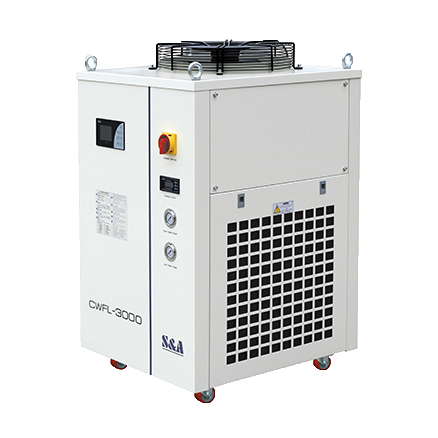

CWFL-3000 Side view

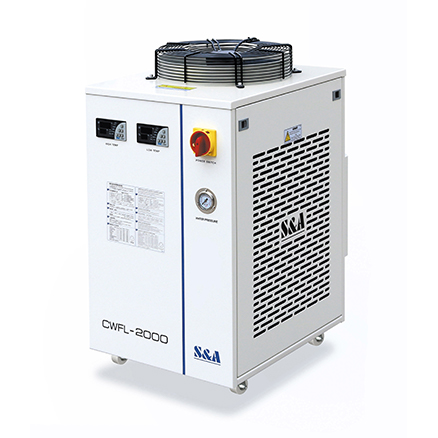

CWFL-2000 side view MAIN
  • S&A CWFL Series Water Chiller
  • CWFL Side Image
  • CWFL-3000 Side view
  • CWFL-2000 side view MAIN

S&A CWFL Series Water Chiller

S&A CWFL series water chillers with dual cooling channels are specially designed for fiber lasers.



Through controlling the temperature of the laser device, our industrial chiller can prevent the laser cavity from thermal deforming, keep output power stable and ensure light beam quality to improve the working life and cutting accuracy of the laser device.



Features:

  • Specially designed for fiber lasers
  • Temperature stability covers +/- 0.3℃, +/- 0.5 ℃ and +/- 1℃ for better water temperature control and stability - Energy saving
  • With two independent temperature control systems(high & low temperatures). Low temperature control system for cooling the fiber laser while high temperature control system for cooling laser head - High temperature alarm
  • Built-in fault find (with alarm) and dual temperature controls
  • Provide stable and reliable cooling for fiber laser machines
  • Suitable for all machines from 40w – 150w rated output power



Key Benefits When Buying From Us:

  • One-year warranty (offered by Megacold)
  • Cost effective
  • Breakdown support (offered through Megacold)
  • 45 years worth of experienced service engineers at your side.



Fill out the enquiry form below to find out specific lead times on the products listed in the table.



Enquire about this Product

CWFL series options

Model



Temperature precision (°C)



Flow rate (litres/min)



Lift (metres)



Refrigerant



Inlet/outlet (BSPT)



Tank capacity (litres)



Fibre laser cooled (watts)



Power requirments



Current



(Amps)

Machine power (Kilowatts)



Electric assisted power (Watts)



Pump power (kilowatts)



Weight (kg)



Dimensions (cm)



CWFL-500AN



+/- 0.3



2 + > 8



45



R-410A



½’’ + ½’’



10



500



220V, 1PH, 50Hz



2.3-9.5



1.7



300 + 600



0.55



50



65 x 38 x 74



CWFL-1000AN



+/-0.5



2 + > 12



45



R-410A



½’’ + ½’’



15



1000



220V, 1PH, 50Hz



3.4-11.5



2.14



400 + 600



0.55



67



70 x 47 x 89



CWFL-1500AN



+/-0.5



2 + > 15



53



R-410A



½’’ + ½’’



15



1500



220V, 1PH, 50Hz



3.4-13.7



2.78



400 + 600



0.75



72



70 x 47 x 89



CWFL-2000AN



+/-0.5



2 + > 20



53



R-410A



½’’ + 1’’



15



2000



220V, 1PH, 50Hz



3.4-14.9



3.06



400 + 600



0.75



95



76 x 56 x 103





CWFL series options continued



Model



Temperature precision (°C)



Flow rate (litres/min)



Lift (metres)



Refrigerant



Inlet/outlet (BSPT)



Tank capacity (litres)



Fibre laser cooled (watts)



Power requirments



Current



(Amps)

Machine power (Kilowatts)



Electric assisted power (Watts)



Pump power (kilowatts)



Weight (kg)



Dimensions (cm)



CWFL-3000EN



+/-0.5



2 + > 40



53



R-410A



½’’ + 1’’



40



3000



380V, 3PH, 50Hz



1.4-9.4



4.1



400 + 1800



1.1



136



87 x 65 x 117



CWFL-4000EN



+/-1



2 + > 40



53



R-407C



½’’ + 1’’



40



4000



380V, 3PH, 50Hz



3.9-5



4.79



400 + 1800



1.1



141



87 x 65 x 117



CWFL-6000EN



+/-1



2 + > 50



53



R-407C



½’’ + 1’’



70



6000



380V, 3PH, 50Hz



3.4-11.5



5.71



400 + 1800



1.1



200



105 x 71 x 133



CWFL-8000EN



+/-1



3 + > 65



53



R-407C



½’’ + 1’’



150



8000



380V, 3PH, 50Hz



3.2-18.9



9.41



600 + 3600



0.75 + 1.1



460



168 x 82
